SPL Parts Rear Swaybar Endlinks GR86/BRZ/GT86/WRX

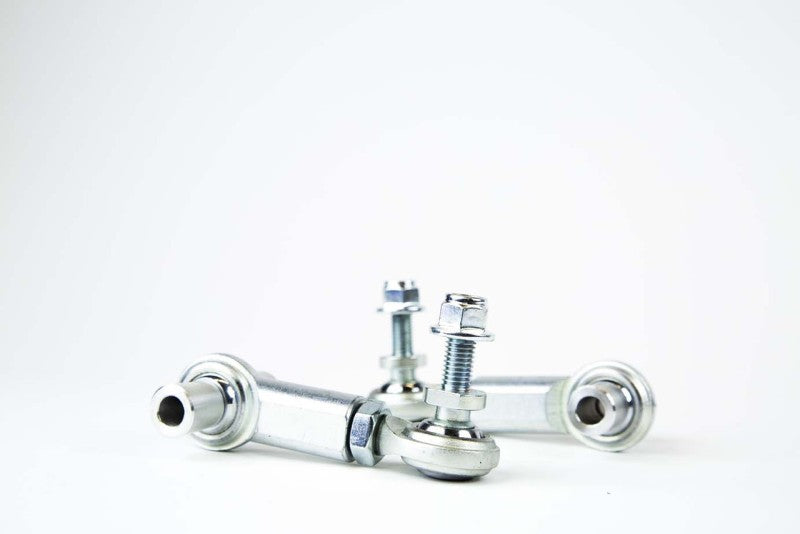

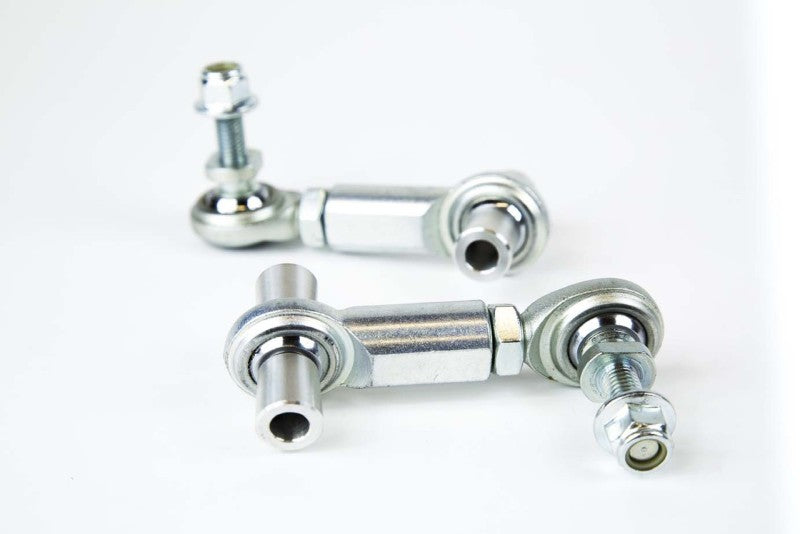

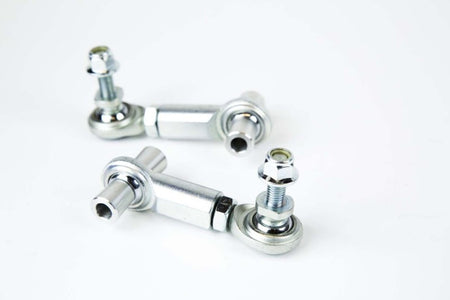

SPL rear adjustable swaybar endlinks for the Toyota GR86 / GT86, Subaru BRZ / WRX / STI, and Scion FR-S feature massive PTFE-lined FK 1/2" bearings to provide the highest load capacity for use with stiffer aftermarket sway bars. Many cheaper offerings reduce the bearing size in order to reduce costs and make it easier to produce a short endlink. This cuts the static radial load limit in half, meaning also the pressure on the spherical is much higher, leading to considerably shorter lifespans.

Another reason for the larger bearing size is they offer a 22% wider range of articulation, which is vital with such a short overall length. On the sway bar side, custom heat-treated chromoly high-misalignment studs allow for extreme articulation angles (up to 65°) to prevent endlink bind when used with adjustable sway bars.

Unlike OEM, SPL endlinks are adjustable, enabling you to eliminate unwanted preload on the sway bars, set the ideal bar angle, and properly corner balance your car. They also replace the OEM rubber mounting with solid aluminum, giving a small increase in rear sway bar rate and quickening it's response. The result is better handling, more sway bar tuning options, and less variation in performance between right-hand and left-hand turns.

Benefits
Useful Adjustability Range
Eliminates Swaybar Preload
Correct Swaybar Install Angle
High Strength Construction
Self-Cleaning, US Made, PTFE-Lined FK Bearings
Materials
6061-T6 Aluminum Spacers
FK PTFE-lined 65° Studded Rod End (F1 Spec, Self-Cleaning)
FK PTFE-lined 65° Bearing (F1 Spec, Self-Cleaning)
Noise, Vibration, and Harshness (NVH)
Product NVH Rating

The rear endlinks are a small contributor to NVH. Replacing rubber increases the amount of vibration that is transmitted between the LCA and subframe, but all of this vibration is isolated from the cabin by large OEM rubber bushings and transmitted through a heavy mass. The longer distance between the source of the noise and the driver's ears, along with the presence of rear seats further reduces noise. Spherical endlinks can also make the occasional noise over asymmetrical bumps, like driving one wheel at a time over a speed bump or reversing out of a sloped driveway.

The rear endlinks don't increase ride harshness.

Suitable for all uses, from daily driver to race car.


Featured On
Fez's GR86 Track Car

Fez's GR86

Devin's VA STI Track Car

Devin's VA STI

Larry Chen's Turbo GR86 Track/Drift Car

Larry Chen's Toyota GR86

Sold as a pair. One pair per vehicle.

Confirmed Applications

2021+ Toyota GR86 (ZN8)

2013 - 2021 Toyota 86 / Scion FR-S (ZN6)

2013+ Subaru BRZ (ZC6/ZD8)

2008+ Subaru WRX / WRX STI (GR/VA/VB)

2010 - 2019 Subaru Legacy (BM/BN)

2008 - 2016 Subaru Impreza (GE/GH/GJ/GP)

Also fits these Subaru models that are lowered more than 1.5" (38mm)

2009 - 2018 Subaru Forester (SH/SJ)

2013 - 2017 Subaru Crosstrek / XV (GP)

2010 - 2019 Subaru Outback (BR/BS)

Replaces OEM Part Number(s)

This is a list of known OEM part numbers. OEMs constantly make changes to part numbers due to part updates, suppliers, etc so this may not be a complete list.

Toyota
SU003-00398

Subaru
20470-AJ000
20470-FG000
20470-AJ010*

* if lowered more than 1.5" (38mm)

IMPORTANT INSTALL INFO

COILOVERS/SETUPS MAY ALTER ENDLINK LENGTHS

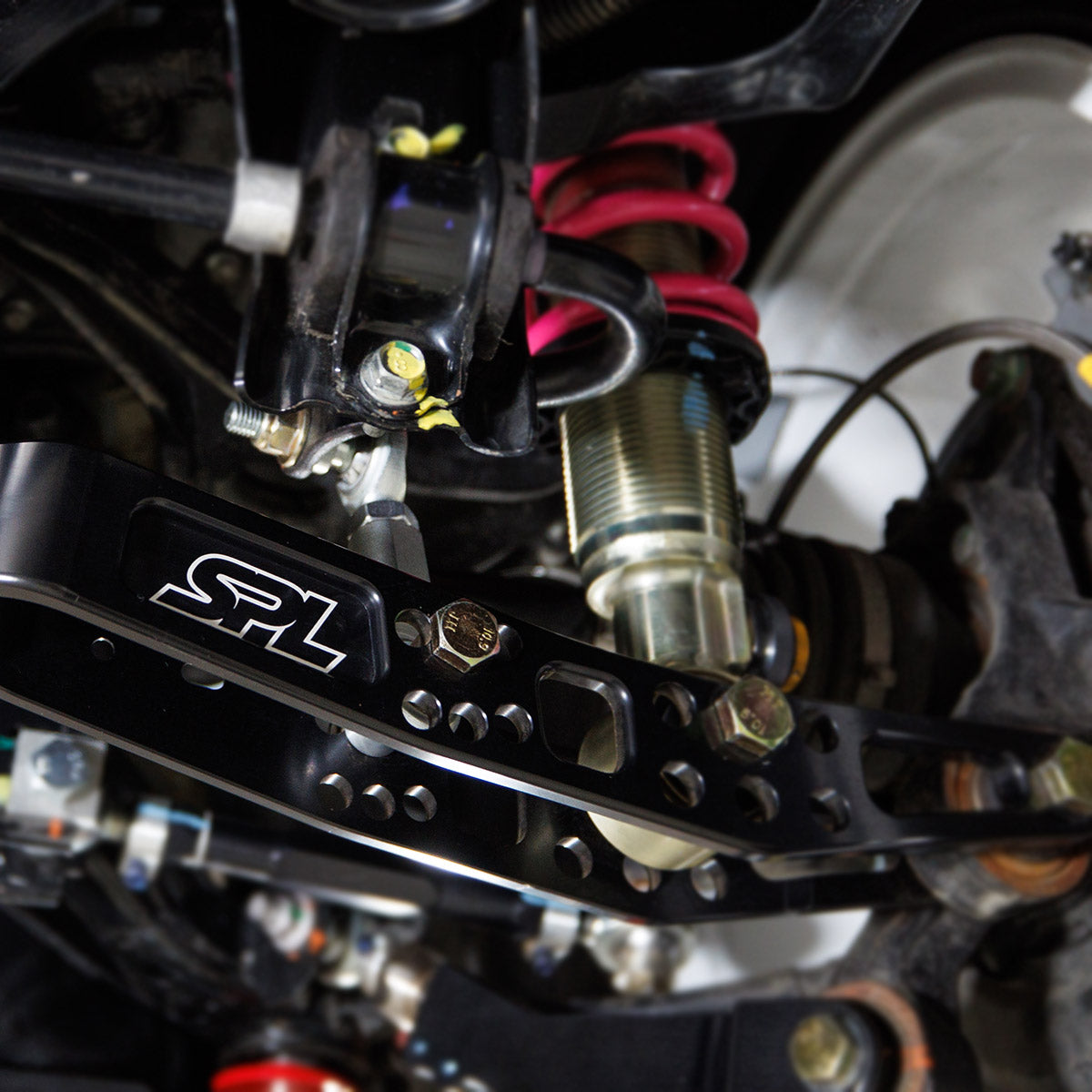

Some coilovers and/or setups may need even shorter endlinks to obtain ideal bar angles. These endlinks (SPL RE FRS) can be adjusted between 3.5 - 4.0" (88 - 100mm), measured between the centers of the mounting points. Our rear lower control arms allow for the mounting point to be changed to give a greater range of adjustment. However, exceptionally low ride heights or using non-SPL rear LCAs may require you to install the sway bar at a less effective arm angle.

If this is the case, it's important to sweep the rear suspension and verify there is no bind.
