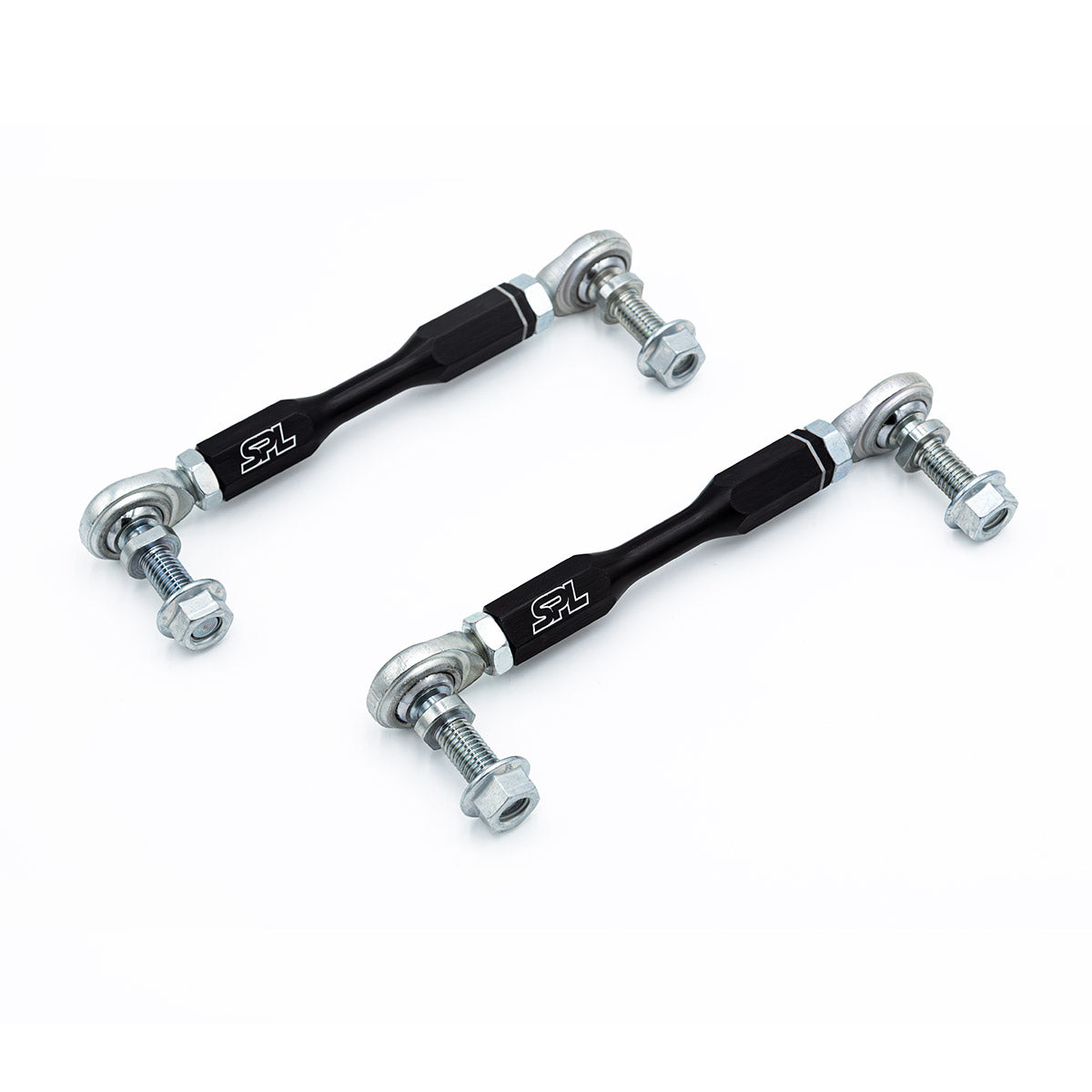

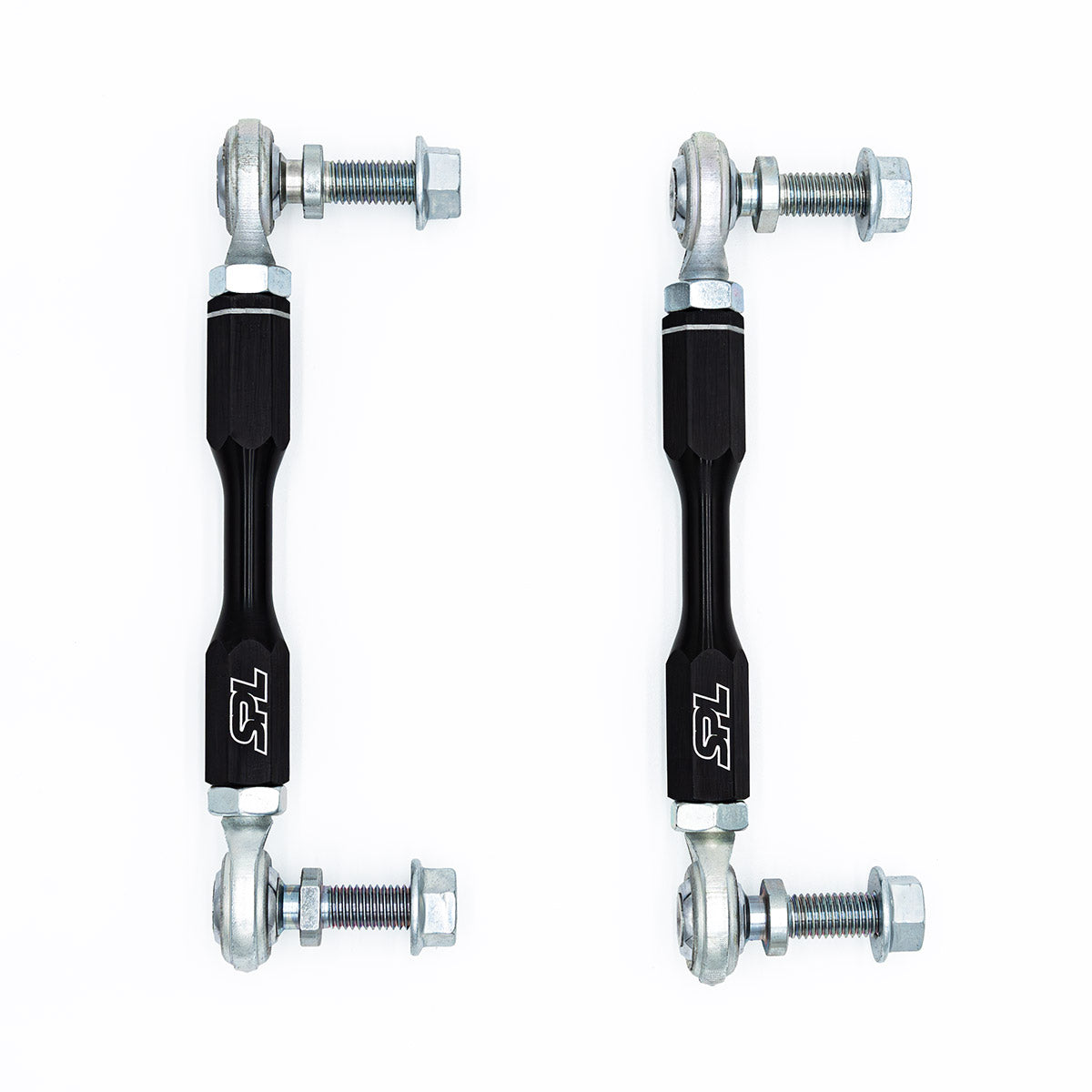

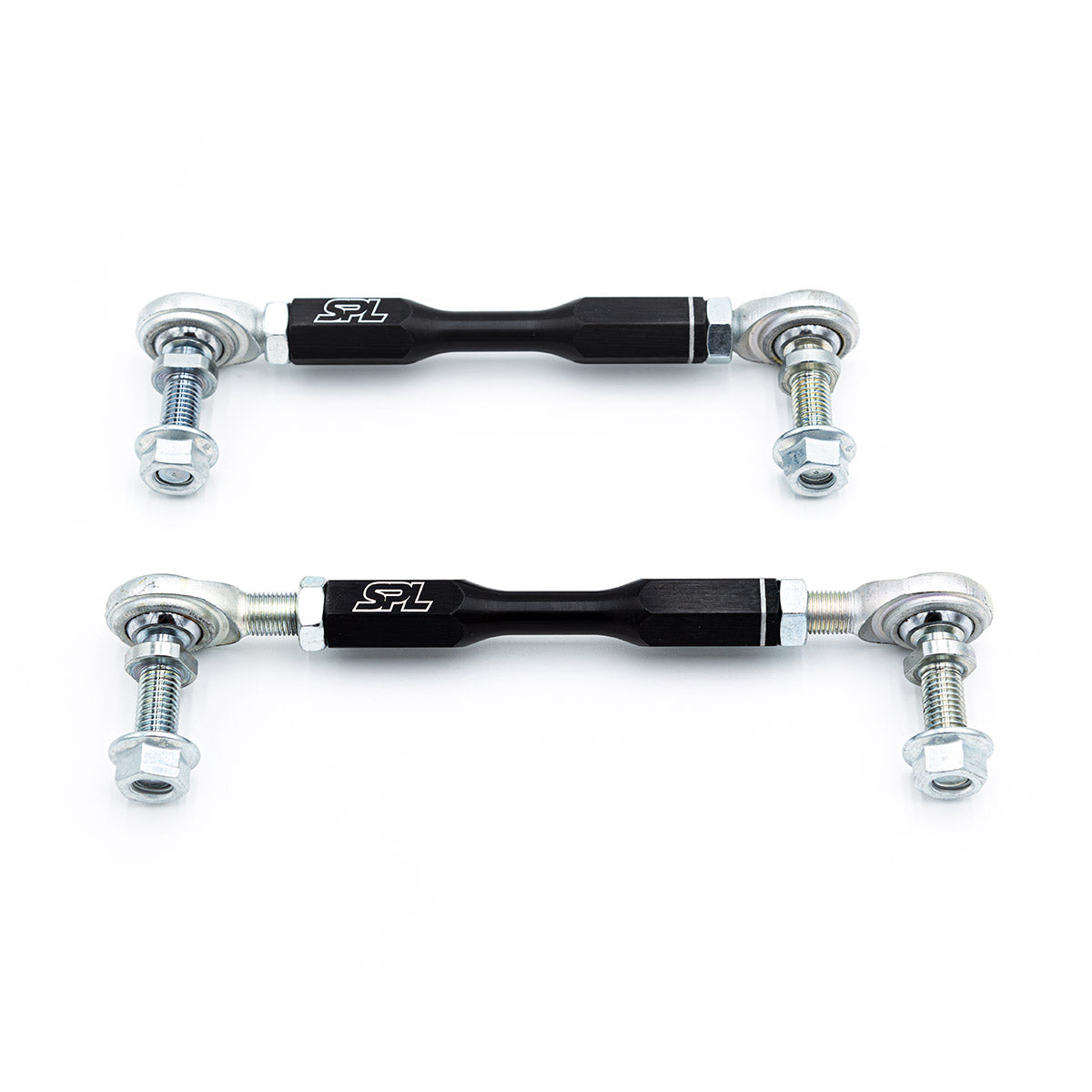

SPL Parts Front Endlinks GR86/BRZ/GT86/FR-S - Short Version

These endlinks are shortened for modified cars that need a shorter endlink length for clearance and proper installation of the sway bar due to coilovers, aftermarket LCAs, and other mods that alter the sway bar mounting points or geometry.

SPL front adjustable swaybar endlinks for the Toyota GR86 / GT86, Subaru BRZ, and Scion FR-S feature massive PTFE-lined FK 1/2" bearings to provide the highest load capacity for use with stiffer aftermarket sway bars. Custom heat-treated chromoly high-misalignment studs allow for extreme articulation angles (up to 65°) to prevent endlink bind when used with adjustable sway bars.

Unlike OEM, SPL endlinks are adjustable, enabling you to eliminate unwanted preload on the sway bars, set the ideal bar angle, and properly corner balance your car. The result is better handling, more sway bar tuning options, and less variation in performance between right-hand and left-hand turns.

Benefits
Large Adjustability Range
Eliminates Swaybar Preload
Correct Swaybar Install Angle
Lightweight, High Strength Construction
Self-Cleaning, US Made, PTFE-Lined FK Bearings
Materials
6061-T6 Aluminum Turnbuckle (Anodized Black)
FK PTFE-lined 65° Studded Rod Ends (F1 Spec, Self-Cleaning)
Easy, On-Car Adjustments
The 6061-T6 turnbuckles use opposing thread patterns (RH and LH) to allow you to adjust the length while it is still installed. Simply turn the turnbuckle to lengthen or shorten the link to the exact desired length and snug the jam nuts.

Noise, Vibration, and Harshness (NVH)
Product NVH Rating

The front endlinks are a moderate contributor to NVH. They connect the body (swaybar is mounted to chassis) to the front struts which are hard mounted to the knuckles. This creates a rigid load path for tire vibrations to be transmitted to the chassis, resulting in more tire noise. How much more road noise is transmitted depends on several factors, namely the tires, speed, frequency of the noise, etc. Spherical endlinks can also make the occassional noise over asymmetrical bumps, like driving one wheel at a time over a speed bump or reversing out of a sloped driveway.

The front endlinks however, do not increase ride harshness.

Suitable for all uses, from daily driver to race car.

Sold as a pair. One pair per vehicle.

Confirmed Applications

2021+ Toyota GR86 (ZN8)

2013 - 2021 Toyota 86 / Scion FR-S (ZN6)

2013+ Subaru BRZ (ZC6/ZD8)

Replaces OEM Part Number(s)

This is a list of known OEM part numbers. OEMs constantly make changes to part numbers due to part updates, suppliers, etc so this may not be a complete list.

Toyota
SU003-00394

Subaru
20420-CA000
