Home » Zamp Z-24 Series Prism Anti-Fog Shields
Zamp

Zamp Z-24 Series Prism Anti-Fog Shields

In stock
SKU: HASZ24BPAF
Driver safety gear and all Zamp products are final sale. No refunds or exchanges. Please make sure you are selecting the correct size.
DISCLAIMER: Item may be in stock in our online inventory. For shop inventory please call us. Special Orders May take 2-3 weeks or longer for delivery depending on the manufacturer.  Not refundable or returnable.
$68.37
-5% $72.00 $68.37

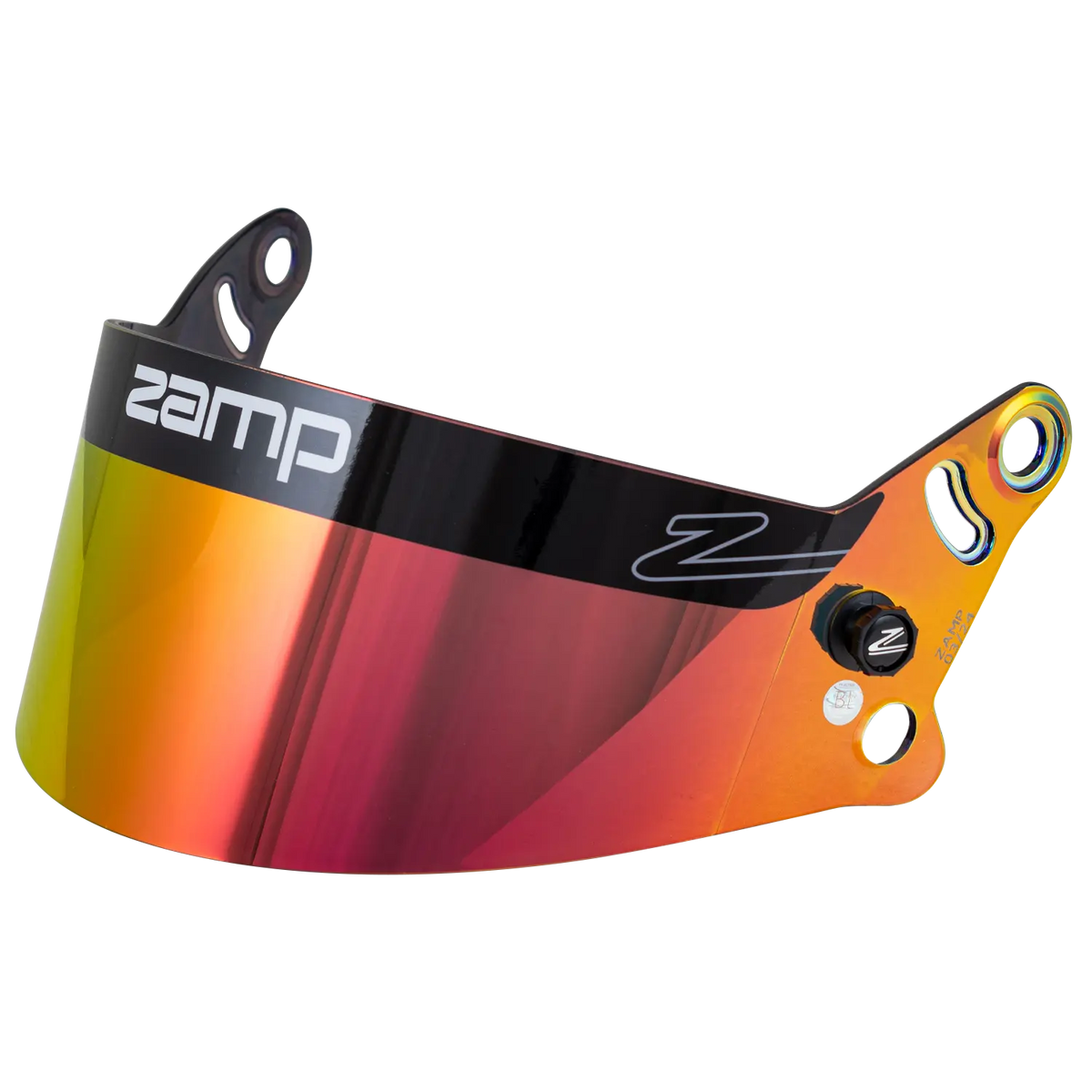

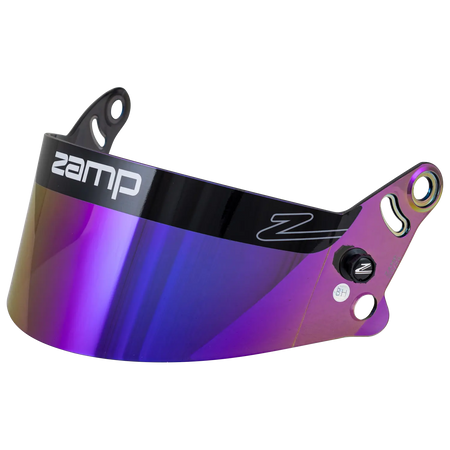

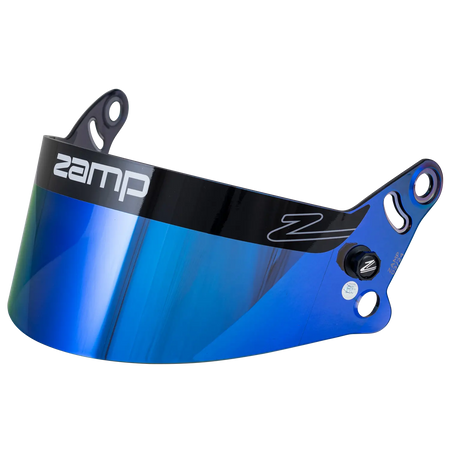

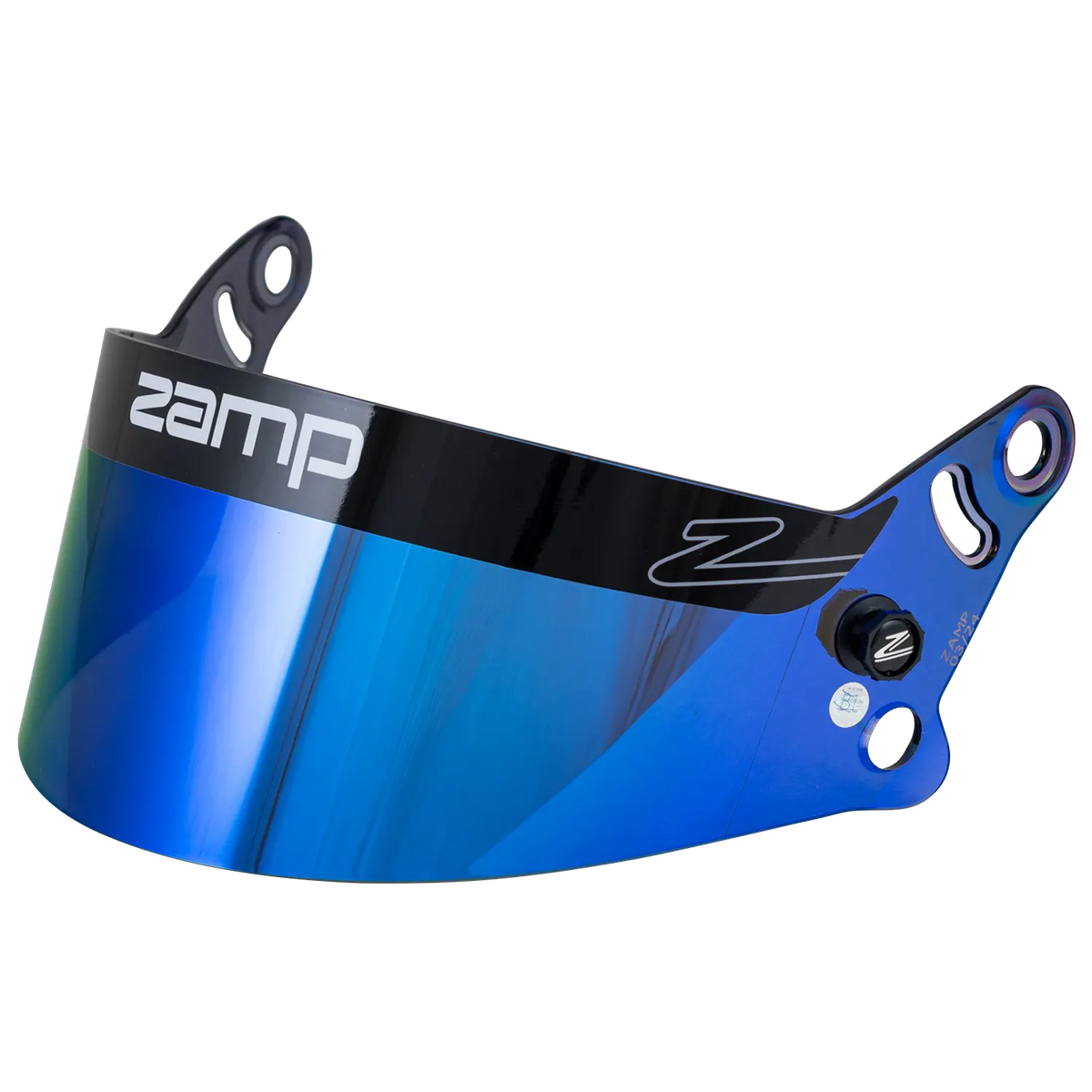

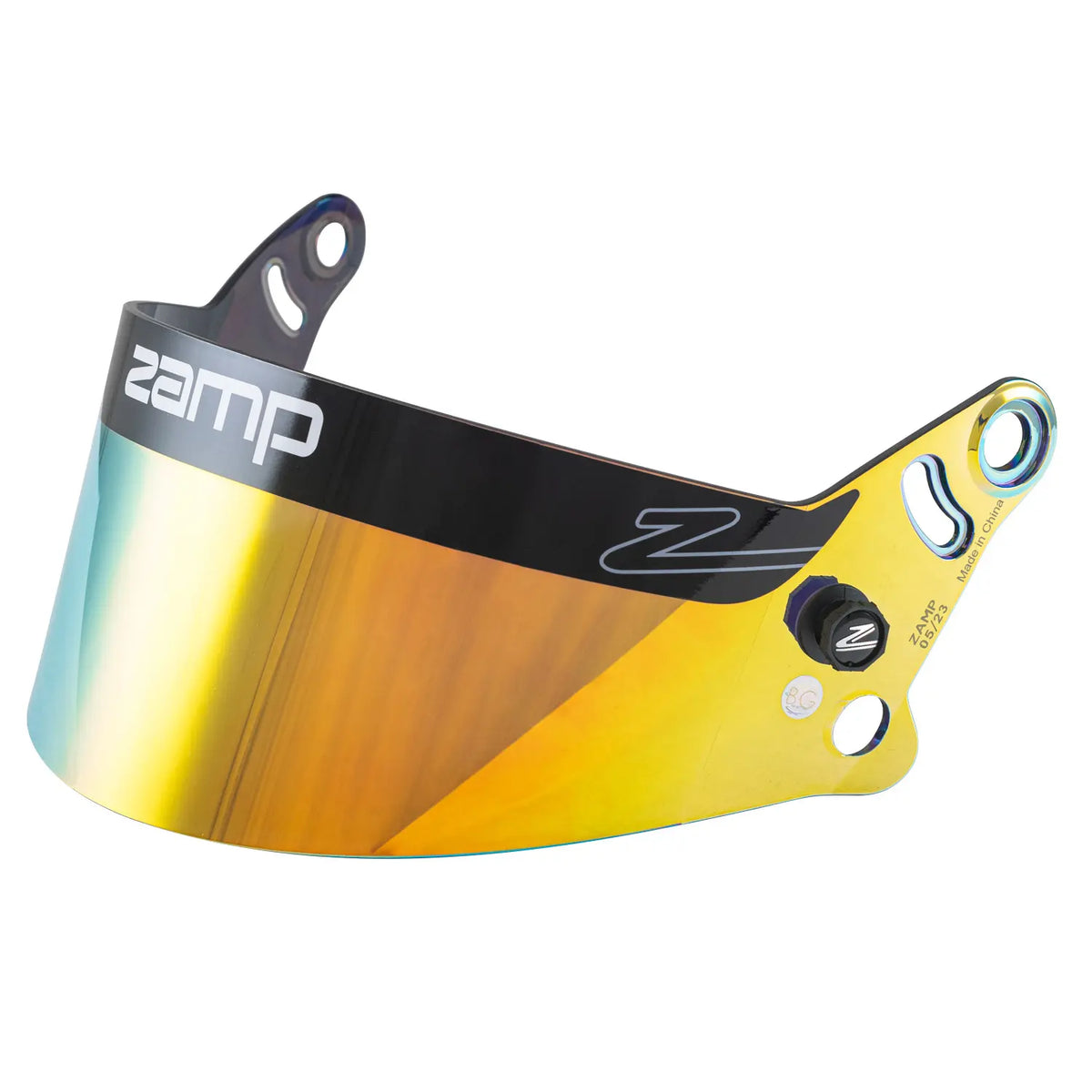

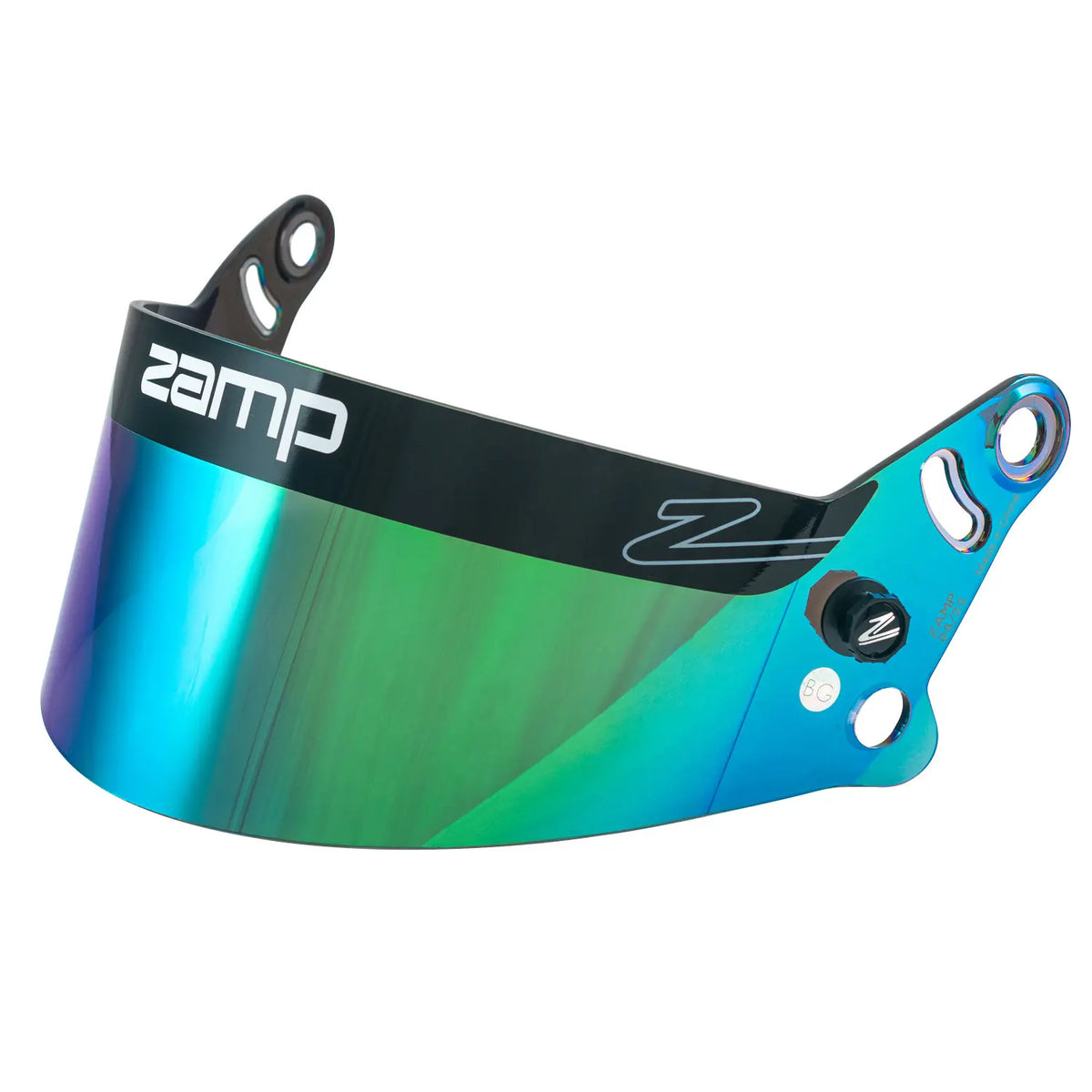

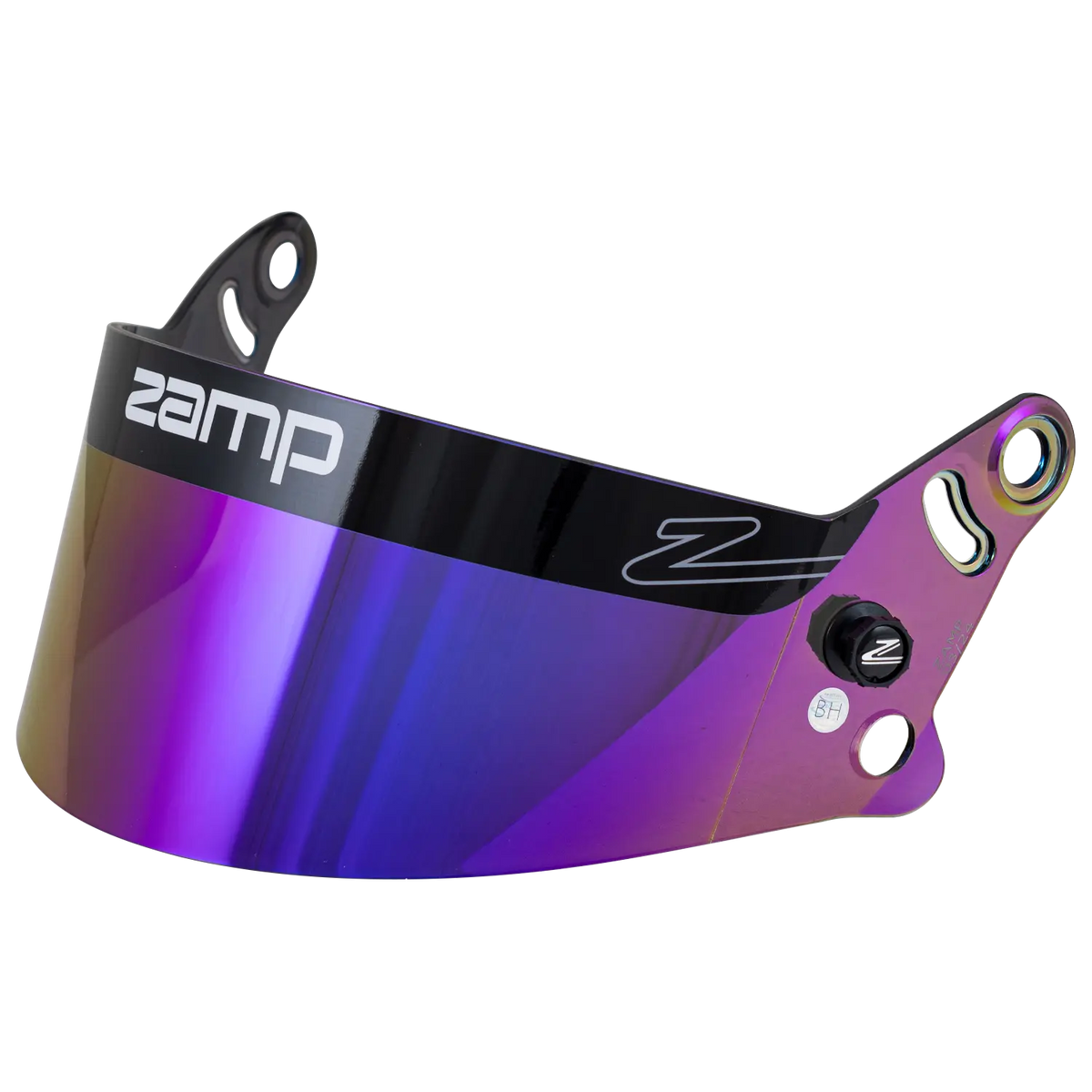

Z-24 Series Prism Anti-Fog Shields

Z-24 Shield Replacement:

NOTE: DO NOT USE power tools or overtighten screws when changing shields.
Step 1 - Lay a towel on a flat surface and set the helmet on it.
Step 2 - Remove the shield pivot tensioners on each side. (This is the smaller screw on the sides of the shield.)
Step 3 - Remove the shield pivot screws on each side. (This is the larger screw on the sides of the shield. For best results, we suggest using a quarter to loosen/tighten these screws.)
Step 4 - Remove the shield. We suggest using a soft cloth towel to wipe down the rubber seal as well as where the shield mounts to the helmet for best results.
Step 5 - Place the new shield on the helmet. There are two white washers that go between the shield and helmet, make sure these are in place before re-installing the shield pivot screws.
Step 6 - Hand thread the shield pivot screws to hold the shield in place. Once hand threaded, use a quarter to tighten until snug with the helmet shell. Do not overtighten.
Step 7 - Hand thread the shield pivot tensioners, then tighten to desired tension for shield movement.
