Home » AP Racing by Essex Radi-CAL Competition Brake Kit (Front 9668/390mm)- Corvette C8
AP Racing

AP Racing by Essex Radi-CAL Competition Brake Kit (Front 9668/390mm)- Corvette C8

Special Order
SKU: 13.01.10192
DISCLAIMER: Special Orders May take 2-3 weeks or longer for delivery depending on the manufacturer.  Not refundable or returnable.
$6,699.00

AP Racing's part number:

  • Disc: CP7177-206GC/CP7177-207GC

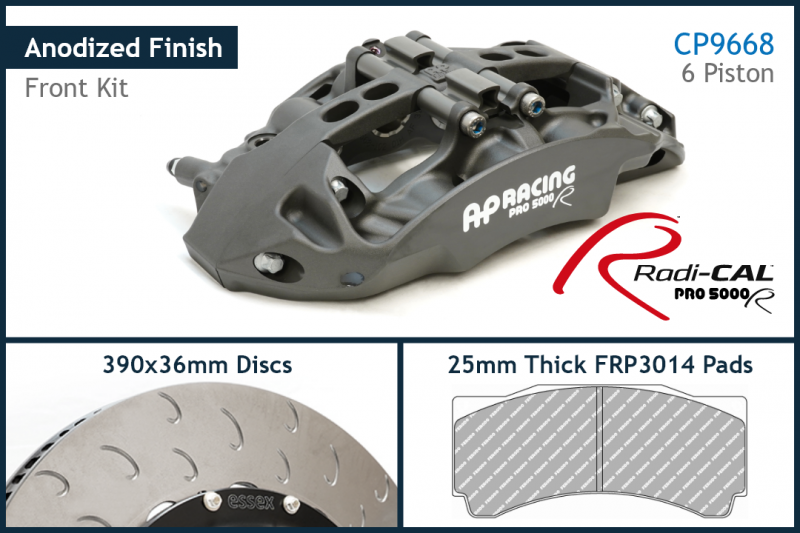

  • Caliper: CP9668-2S7L/CP9668-3S7L, 6 pot, ANO

Complete front AP Racing by Essex Radi-CAL Competition Brake Kit for the C8 Corvette Base, Z51 and Z06 (all trims):

  • Saves approximately 9 unsprung lbs. on front end vs. OEM Z06 Iron System
  • Drastically reduced spares/running costs and minimal 6 lb. weight penalty vs. OEM Z07 Carbon Ceramic system
  • Features AP Racing CP9668 Radi-CAL calipers with 25mm (1 inch) thick pads extreme durability!
  • Quick-change spring clips included for quick and easy pad changes
  • Championship-winning 2-piece fully floating 390x36mm, 72 vane AP Racing J Hook Discs
  • Every component designed to resist the heat of extended track sessions
  • Ventilated stainless steel pistons with anti-knockback springs and high temperature seals (no dust boots to burn up)
  • Pistons sized properly to allow for integration with OEM master cylinder and ABS system
  • Designed to work with OEM rear brakes or our Essex/AP Racing rear BBKs
  • Patented Disc Burnishing/Bedding Service with kit purchase $100
  • Caliper Pad Tension Clips not included

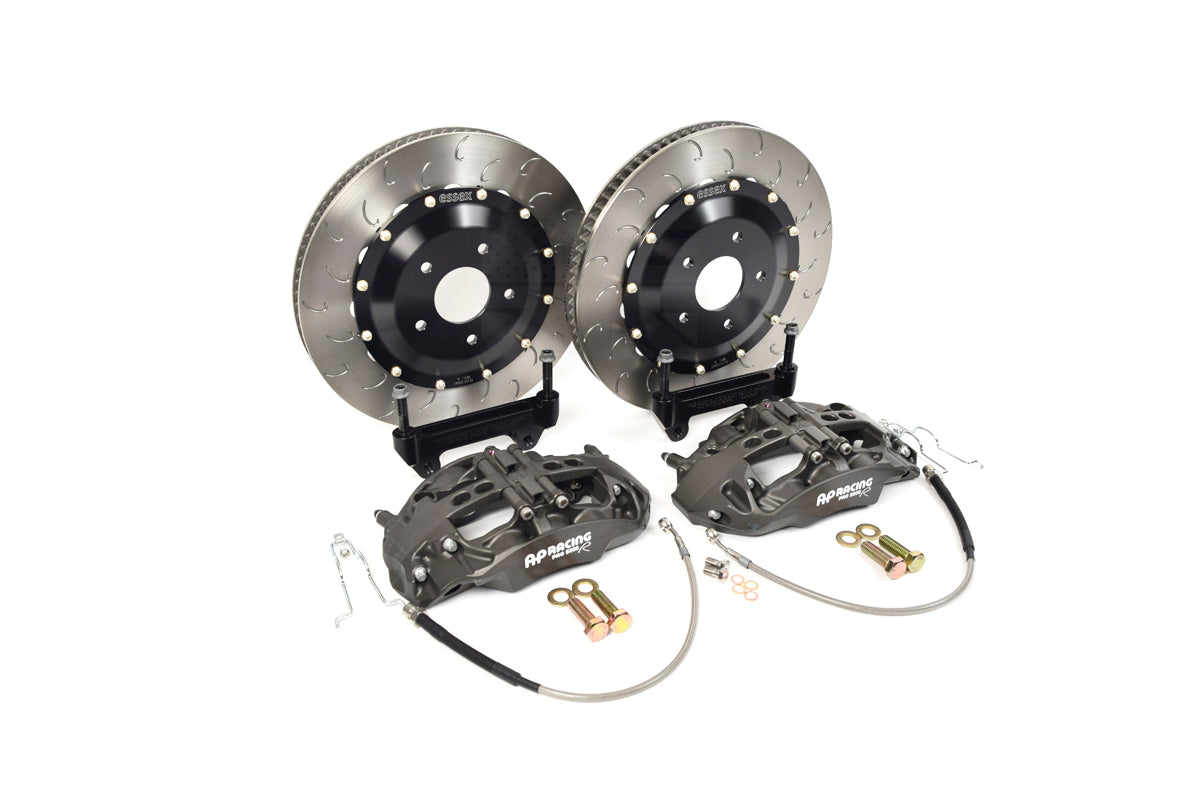

                                                                                                            What's In The Box?

                                                                                                            • One pair AP Racing CP9668 Radi-CAL Pro5000R six piston calipers in hard anodized finish
                                                                                                            • One pair 390x36mm AP Racing, 72 vane, J Hook racing discs, with fully floating 6061 hard anodized aluminum hats, and attachment hardware
                                                                                                            • One pair caliper mounting brackets and hardware
                                                                                                            • One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
                                                                                                            • Detailed installation instructions
                                                                                                            • Brake pads are NOT included with our system. Racing brake pads are a highly personal choice. Many manufacturers include a set of inexpensive, low quality pads with their brake kits. Rather than artificially inflating the price of our system with a set of pads you probably don't want anyway, we've decided to remove the cost from our system and allow our customers to choose the pads that best suit their needs/wants. When purchasing our kit, you are able to choose one set of front pads at a substantial discount vs. the retail price. Please use the drop-down menu to select your pads.
                                                                                                            • Pad Tension Clips (frequently referred to as anti-rattle clips) are NOT included with our Competition Kits, but we do offer them as an option if you're concerned about NVH. One of the great benefits of the AP Racing calipers in our system is that they are designed to accommodate pads from a wide range of manufacturers. Each manufacturer builds their pads with specifications that are slightly different. As such, pads from different manufacturers, or even from different batches, won't always fit in the calipers in exactly the same manner. Some pads are a snug fit, while others may rattle around and produce noise. The Essex Designed Pad Tension Kit is designed to dramatically reduce pad movement inside the caliper, along with just about all resulting noise.

                                                                                                            Radi-CAL

                                                                                                            “Radi-CAL” is a blanket term used to describe AP Racing’s patented asymmetrical brake caliper design. Radi-Cal technology is grounded in Computer Aided Design (CAD) and Finite Element Analysis (FEA), and allows for organic, alien-looking designs that are a radical departure from conventional caliper designs of the past. Radi-CAL's are widely considered the pinnacle of current brake caliper technology. Since their inception in 2007, these revolutionary calipers have amassed a lengthy string of race victories at all levels of professional motorsport, while redefining brake performance expectations. For more details on the design concept and what these calipers have achieved in professional racing, please visit our blog and read The AP Racing Radi-CAL Story.
