SPL Parts Front Tie Rod Ends - Bumpsteer Adjustable GR86/BRZ/WRX
Couldn't load pickup availability

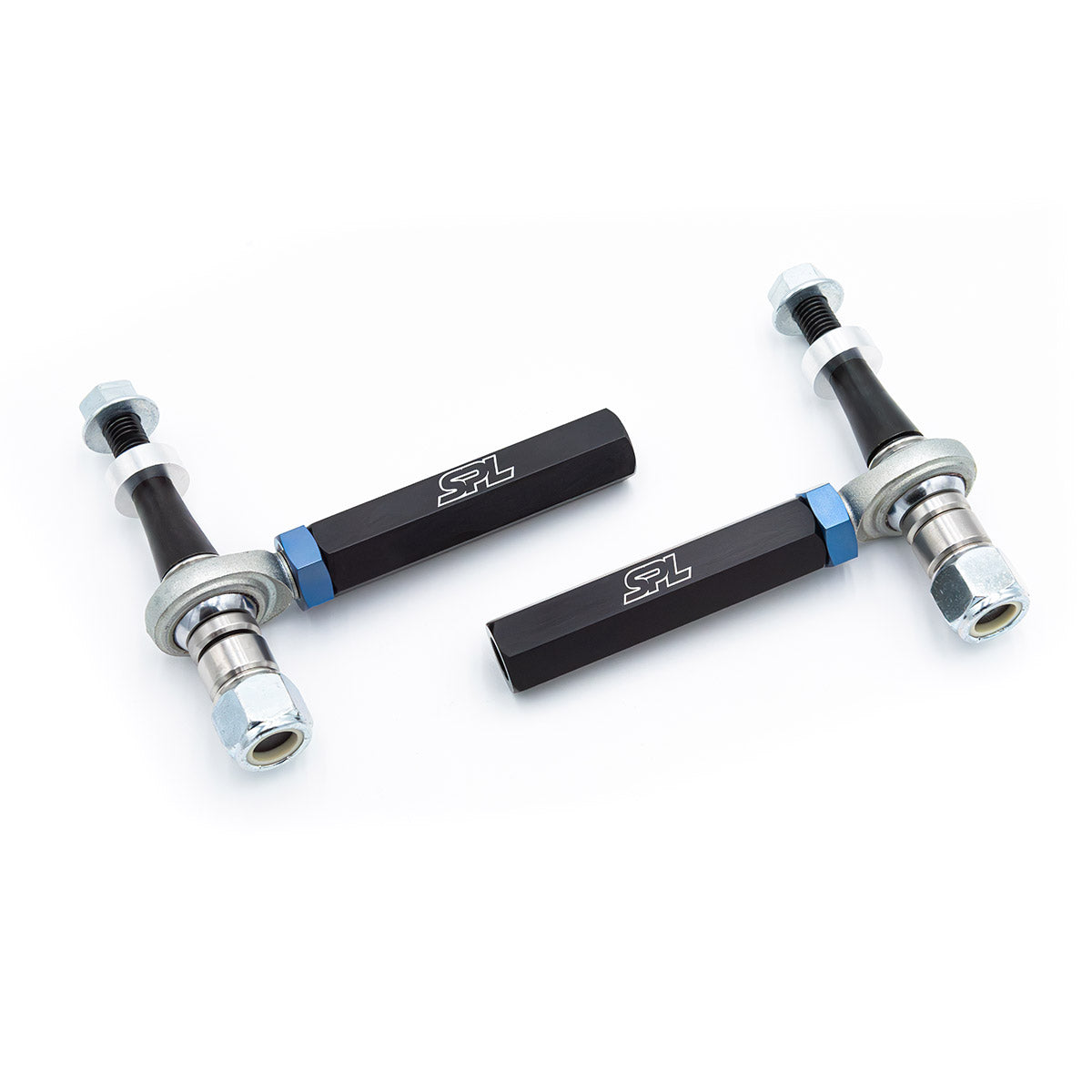

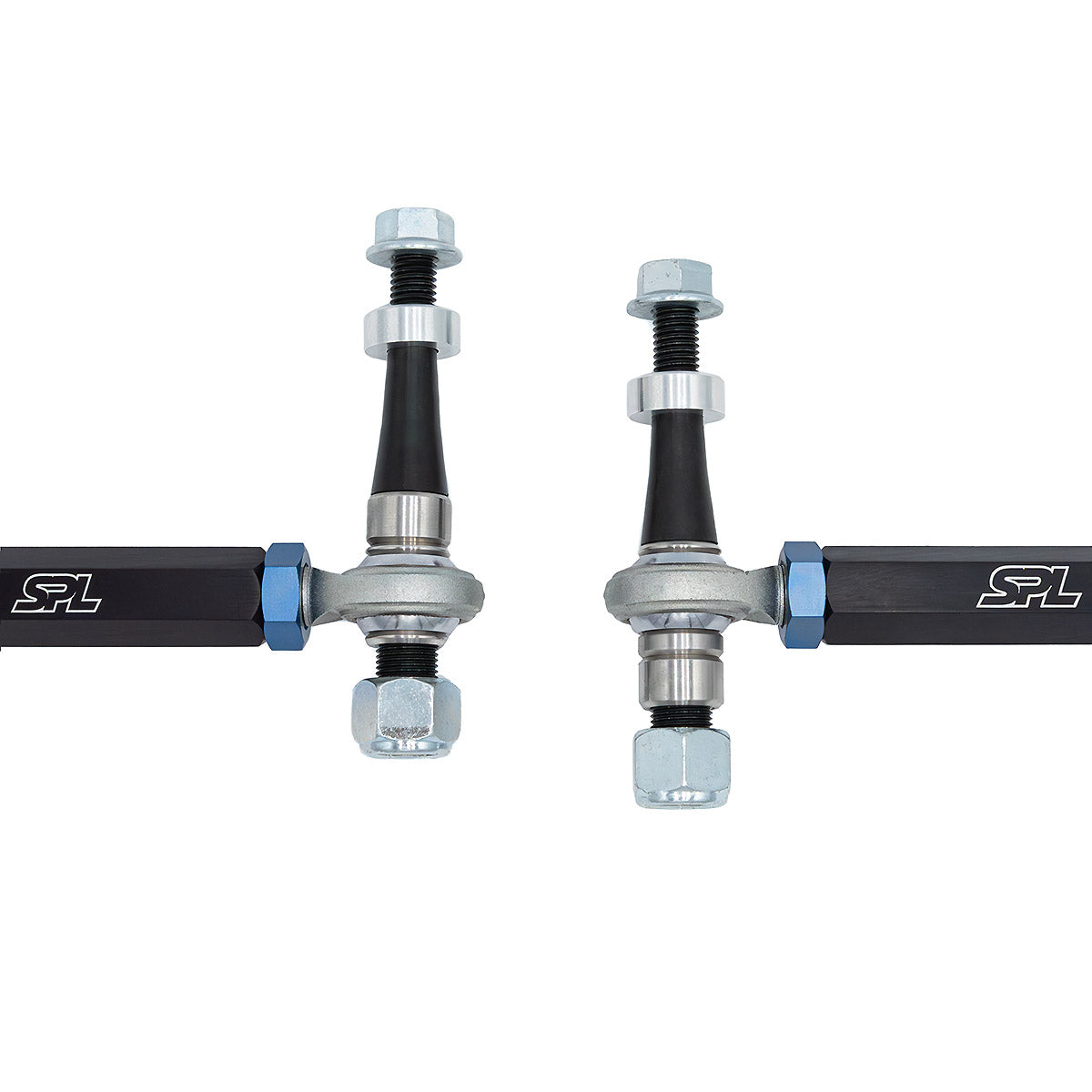

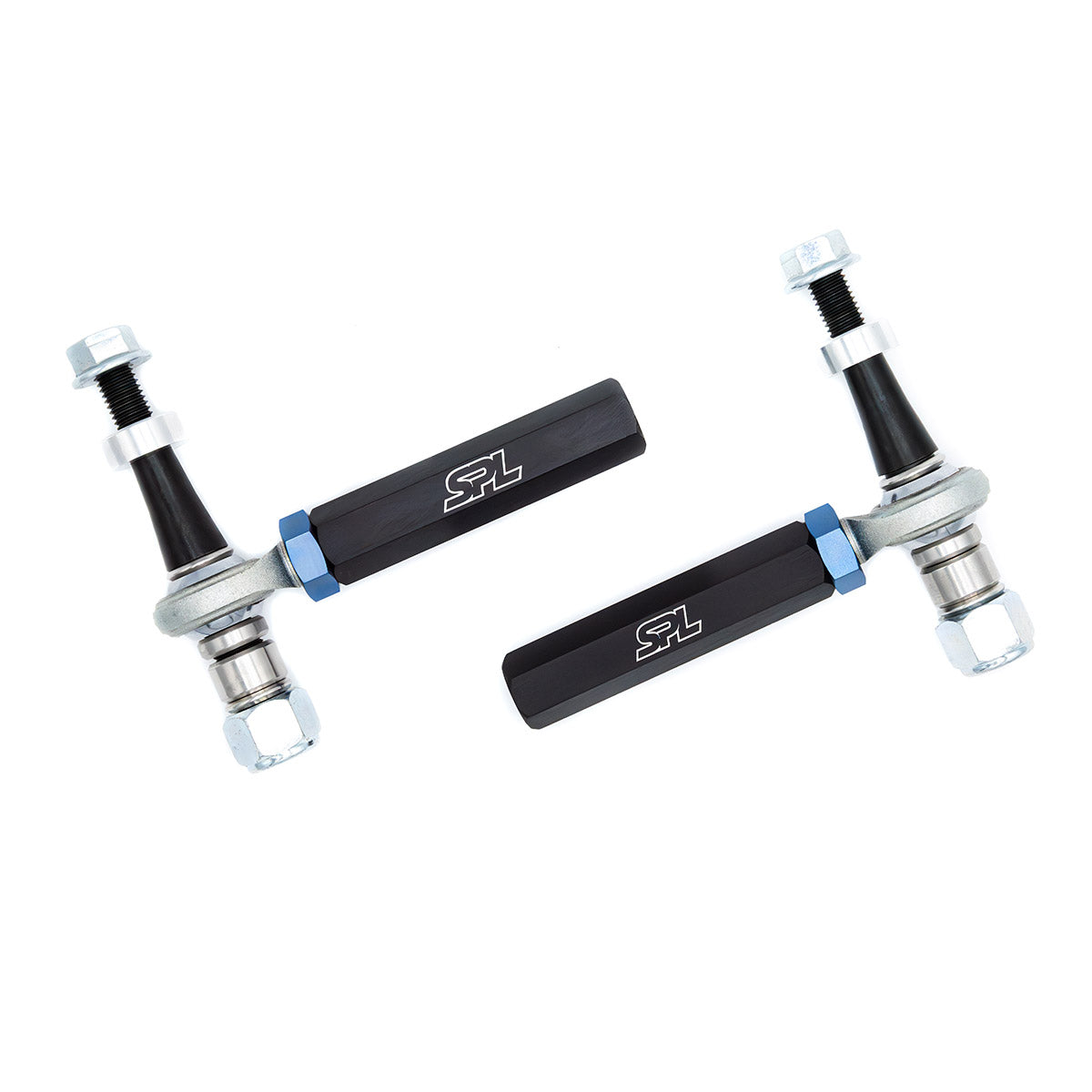

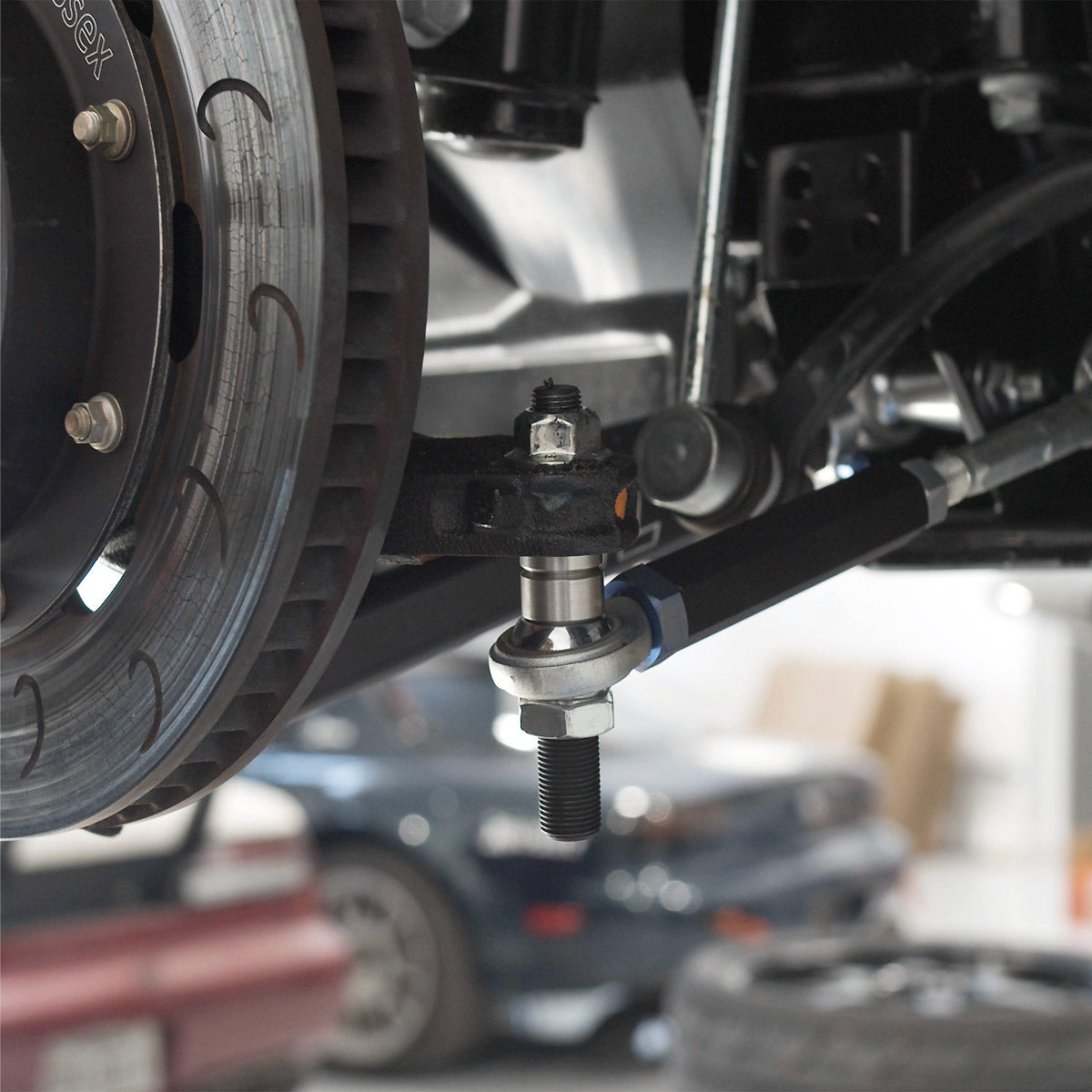

SPL Tie Rod Ends for the GR86 / BRZ / GT86 / FR-S allows for bumpsteer adjustment by allowing the tie rod end pivot to be relocated with the use of spacers. On lowered cars, this results in less dynamic toe change (aka bumpsteer) as the suspension compresses (bump) during cornering and over rough roads, resulting in more predictable handling, less tire shoulder wear, and better stability over rough roads and track curbing.
Benefits
Large Range of Bumpsteer Correction
Lightweight: 2.22 lbs (1.0 kg) / 1.11 lbs (0.5 kg) per Side
Improves Steering Feel, Handling, and Stability Over Bumps, Especially While Braking/Turning
Reduced Front Tire Toe Wear
Maintenance-Free, US Made, PTFE-Lined FK Bearings

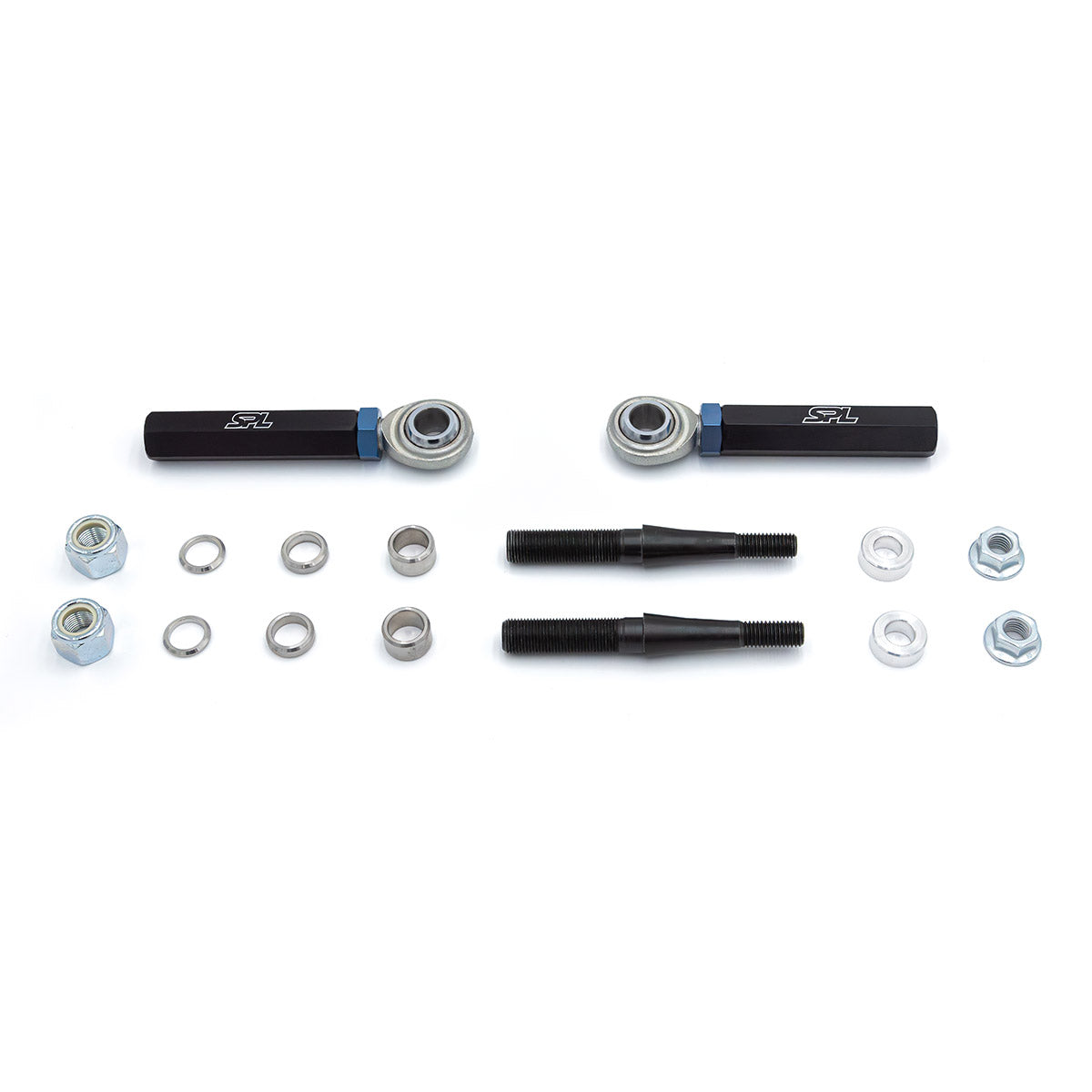

Materials
6061-T6 Aluminum Turnbuckle
6061-T6 Aluminum Ring Spacer (For GR86 / 2nd Gen BRZ)
4140 Chromoly Steel Tapered Stud
304 Stainless Steel 1/8", 1/4", and 1/2" Spacers
Ti-6Al-4V Titanium Jam Nut (Anodized Blue)
Noise, Vibration, and Harshness (NVH)
Product NVH Rating
The SPL tie rod ends are not a significant contributor to NVH. They improve the driving experience by reducing bumpsteer on uncorrected cars.
Sold as a pair. One pair per vehicle.
Confirmed Applications
2021+ Toyota GR86 (ZN8)
2013 - 2021 Toyota 86 / Scion FR-S (ZN6)
2013+ Subaru BRZ (ZC6/ZD8)
2008+ Subaru WRX / STI (GR/VA/VB)
Replaces OEM Part Numbers
This is a list of known OEM part numbers. OEMs constantly make changes to part numbers due to part updates, suppliers, etc so this may not be a complete list.
Toyota
SU003-00833
SU003-00834
Subaru
34161-CA000
34161-CA010
34161-CC000
34161-CC010
This Part Fits:
Year | Make | Model | Submodel |
---|---|---|---|
2013-2016 | Scion | FR-S | Base |
2013-2020 | Subaru | BRZ | Limited |
2013-2019 | Subaru | BRZ | Premium |
2015 | Subaru | BRZ | Series.Blue |
2019 | Subaru | BRZ | Series.Gray |
2016 | Subaru | BRZ | Series.HyperBlue |
2017 | Subaru | BRZ | Series.Yellow |
2018,2020 | Subaru | BRZ | TS |
2008-2014 | Subaru | Impreza | WRX |
2008-2013 | Subaru | Impreza | WRX STI |
2015-2021 | Subaru | WRX | Base |
2015-2021 | Subaru | WRX | Limited |
2015-2021 | Subaru | WRX | Premium |
2015-2021 | Subaru | WRX STI | Base |
2015 | Subaru | WRX STI | Launch Edition |
2015-2021 | Subaru | WRX STI | Limited |
2019 | Subaru | WRX STI | S209 |
2016 | Subaru | WRX STI | Series.HyperBlue |
2018 | Subaru | WRX STI | Type RA |
2017-2020 | Toyota | 86 | Base |
2018-2020 | Toyota | 86 | GT |
2020 | Toyota | 86 | Hakone Edition |
2017 | Toyota | 86 | Special Edition |
2019 | Toyota | 86 | TRD Special Edition |
2023 | Toyota | GR86 | 10th Anniversary Special Edition |
2022-2024 | Toyota | GR86 | Base |
2022-2024 | Toyota | GR86 | Premium |
