SPL Parts BMW E9X/E8X/F8X Adjustable Front Caster Rod Monoball Bushings
Couldn't load pickup availability
BMW E9X/E8X/F8X Tension Rods (TR) provide a wide range of front caster adjustment, allowing precise alignment for optimal turn-in response and to compensate for variances between left and right caster. Low-friction, smooth articulating FK Spherical Bearings eliminate the stock mushy rubber bushing to provide a more responsive steering feel. Anti dive geometry can also be tuned with the use of our stainless steel spacers
Our parts are engineered for maximum performance. Billet Aluminum alloy 2024 hex rods are precision CNC machined and gun drilled to reduce unsprung weight while maintaining high strength and stiffness. Our exclusive 360 degree Rotating Clamp design allows for easy access to quickly and precisely locking in your desired alignment settings. Blue Anodized Titanium hardware shaves even more unsprung weight from the arms and offers superior strength.
FK Bearings Rod Ends are manufactured in Connecticut. The JMX is an upgraded harden rod end used for superior added strength. Featuring a Teflon liner to provide quiet operation, low friction, smooth articulation and eliminates bushing deflection under load. The PTFE liner is chemically bonded to the inner diameter of the race. The liner offers a very high load carrying capacity and has greatly increased dynamic wear characteristics. The operating temperatures of the liner ranges from -65º to 325º F, offering robust reliability for both street and track use.
Sold as a pair.
Made in the USA.

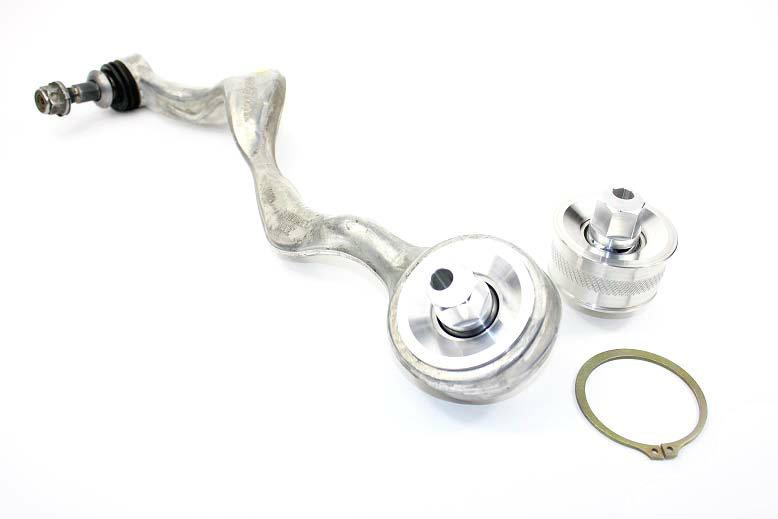

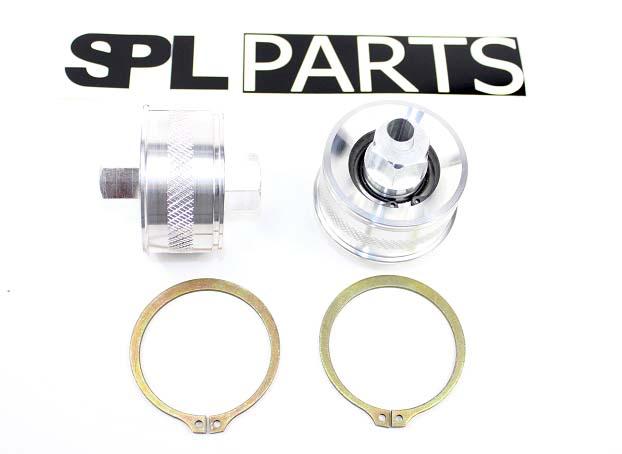

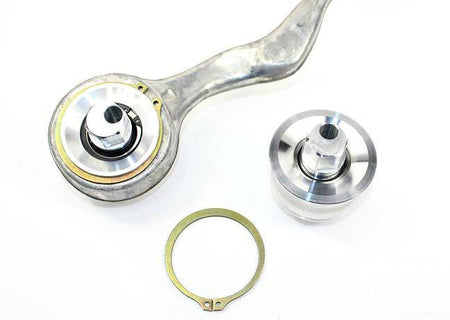

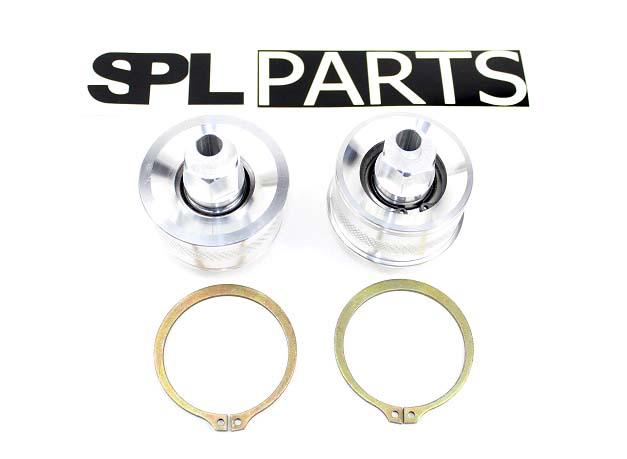

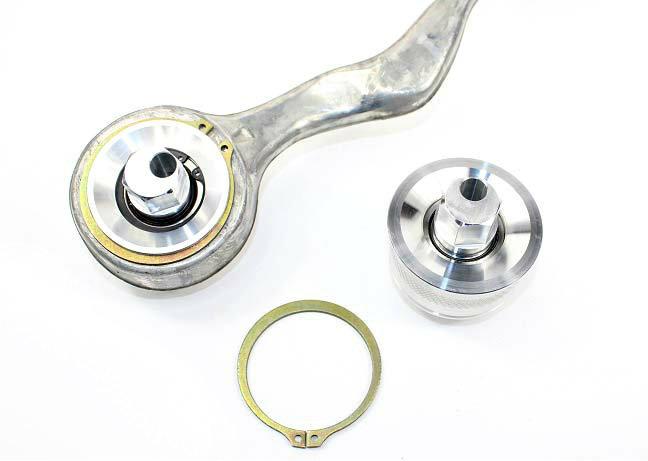

Front Caster Rod Bushings (CRB) replace the stock flexible rubber bushings with low friction, articulating Spherical Bearings eliminating bushing deflection and reducing friction. This maintains optimum suspension geometry under load to improve braking and handling feedback. Massive 1" sized FK Racing Bearings with self lubricating Teflon liners are used to ensure maximum performance and durability. Innovative CNC machined offset bearing spacers provide +/- 2 degrees of caster adjustment. OEM arms not included.
Sold as a pair.
Made in the USA.
Caster Rod Bushings Features:
6061-T6 Aluminum bearing housing with outer knurl
6061-T6 Aluminum offset spacers provide +/-4 degrees of caster adjustment
FK 1" ptfe lined spherical bearings
Applications:
2006-2013 E9X 3 Series M and non M
2008+ E8X 1 Series M and non M
2014+ F80 M3
2014+ F82 and F83 M4
2016+ F87 M2
**Please note these will not fit xDrive/AWD vehicles**
