Swift Standard Springs 14-inch Coilover Barrel Type 2.5-inch ID single
DISCLAIMER: Special Orders May take 2-3 weeks or longer for delivery depending on the manufacturer. Not refundable or returnable.
Regular price
$111.35
Regular price
-15%
$131.00
Sale price
$111.35
Couldn't load pickup availability

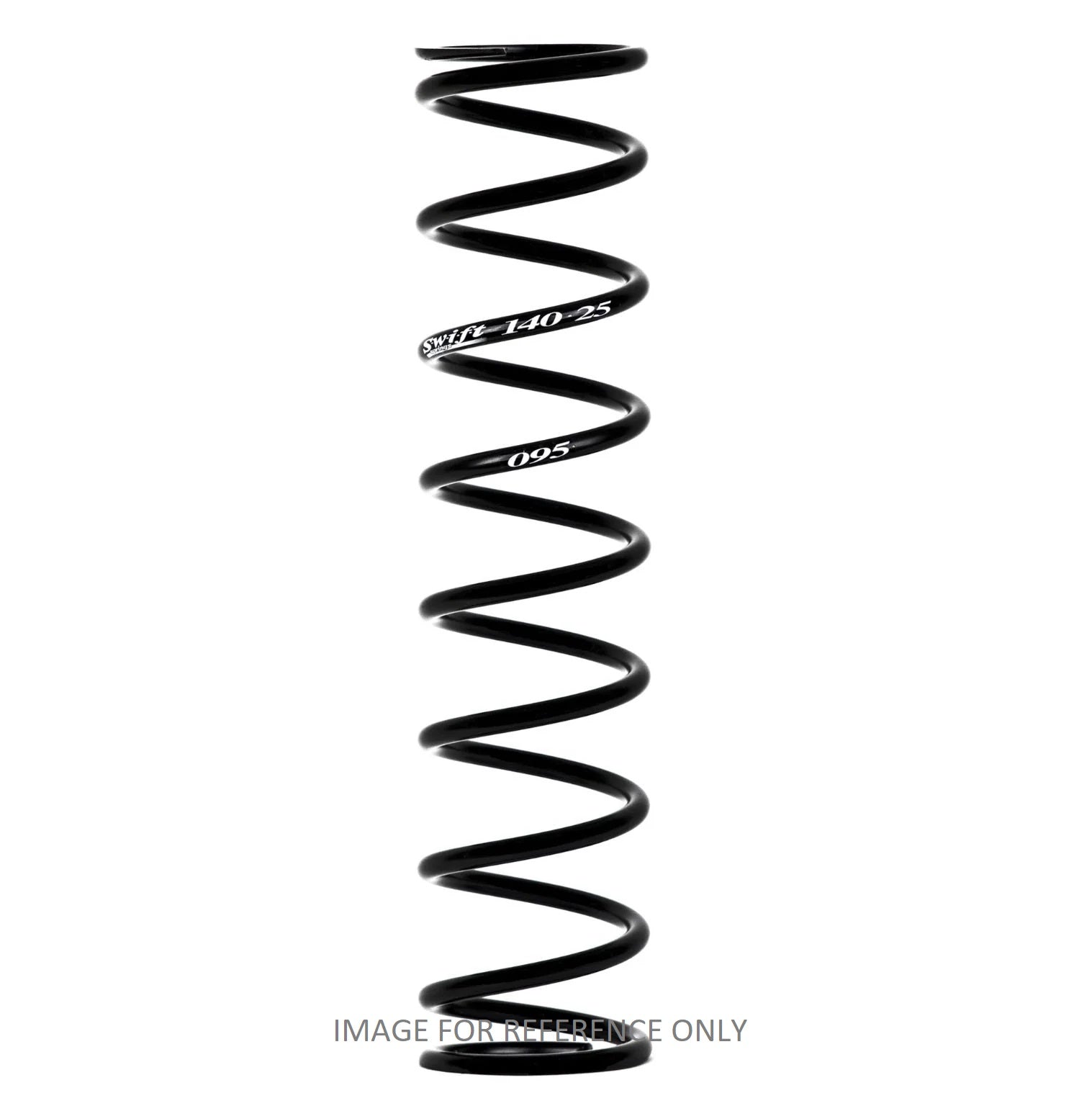

*Images are for reference only, the actual product may vary.
Note: B=Barrel BP=Bulletproof Barrel
Swift springs are a great way to Improve ride quality and customize your coilovers spring rates. Most coilover brands do not recommend going more than 2-4K higher or lower than original spring rates for the best damper performance.
- 14" Length Swift Springs
- Sold as a single coilover spring
- Barrel Type
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | MAX LOAD |
| lbs/inch | inch | inch | lbs | |
| 140-250-050 B | 50 | 11.3 | 11.3 | 562 |
| 140-250-080 B | 80 | 10.8 | 10.8 | 862 |
| 140-250-100 BP | 100 | 10.8 | 10.8 | 1,082 |
| 140-250-125 BP | 125 | 10.7 | 10.7 | 1,338 |
| 140-250-150 BP | 150 | 10.5 | 10.5 | 1,570 |
| 140-250-165 BP | 165 | 9.8 | 10.4 | 1,715 |
| 140-250-175 BP | 175 | 9.8 | 10.3 | 1,808 |
| 140-250-185 BP | 185 | 9.7 | 10.2 | 1,889 |
| 140-250-200 BP | 200 | 9.7 | 10.1 | 2,030 |
| 140-250-225 B | 225 | 8.1 | 10.4 | 2,209 |
| 140-250-250 B | 250 | 7.8 | 10.3 | 2,432 |
| 140-250-275 B | 275 | 8.0 | 9.8 | 2,541 |
| 140-250-300 B | 300 | 7.7 | 9.8 | 2,777 |
| 140-250-325 B | 325 | 7.6 | 9.6 | 2,944 |
